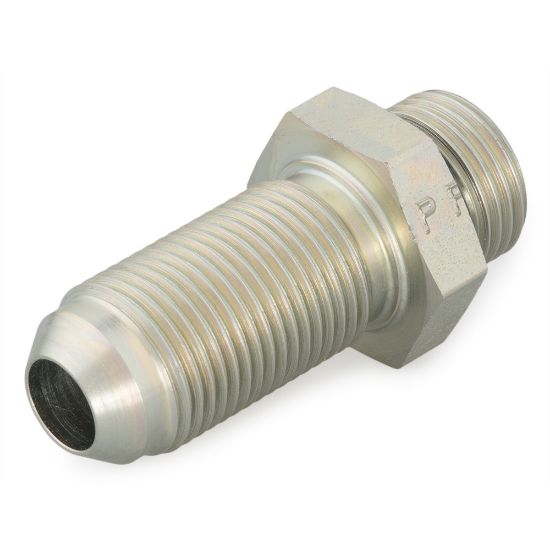

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 WF5OX-WLN-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	2 in stock
Partner Available:	53 in stock

SKU: 10 WF5OX-WLN-S

$47.65

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Dimensional Weight	0.12464028776978417 lb
Body Material	Steel	Shape	Straight
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J514
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	5/8 inch	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 3 Size	na	Connection Type	Bulkhead Tube to SAE Straight Thread
Connection 1 Size	Male 37° Flare Bulkhead with Locknut	Connection 2 Size	Male SAE Straight Thread

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
