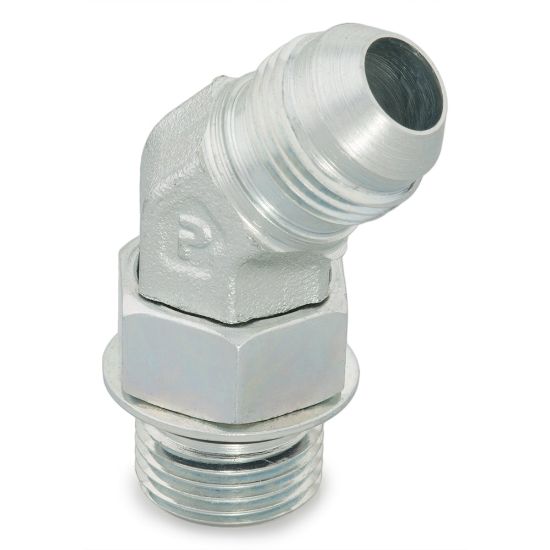

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 V5OX-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	29 in stock
Partner Available:	336 in stock

SKU: 10 V5OX-S

$24.06

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J514
Dimensional Weight	0.06853642086330936 lb	Connection Type	Tube to SAE-ORB
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	5/8 inch	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Male 37° Flare	Connection 2 Size	Male SAE-ORB
Connection 3 Size	na	Shape	45° Elbow

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok

Literature and Reference Materials
