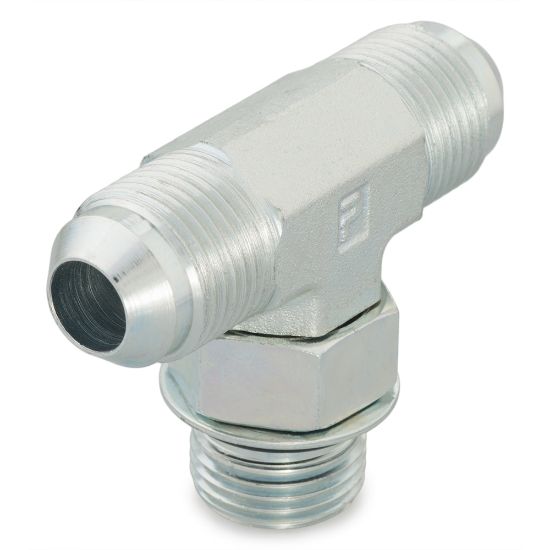

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 S5OX-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	5 in stock
Partner Available:	137 in stock

SKU: 10 S5OX-S

$40.00

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Body Material	Steel
Dimensional Weight	0.12336555755395684 lb	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J514	Connection 2 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Male 37° Flare	Connection 2 Size	Male 37° Flare
Shape	Tee	Connection Type	Branch Tee
Connection 3 Thread Size	7/8-14 inch	Connection 3 Size	Male SAE-ORB

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
