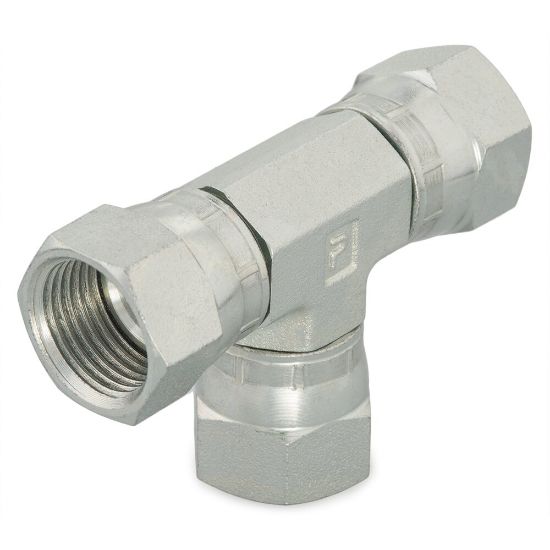

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 JX6-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Backordered
Partner Available:	20 in stock

SKU: 10 JX6-S

$101.85

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Body Material	Steel
Connection Type	37° Flare	O-Ring Material	na
Specifications Met	SAE J514	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 2 Tube Outside Diameter	14, 15, 16 mm	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Female 37° Flare Swivel	Connection 2 Size	Female 37° Flare Swivel
Shape	Tee	Connection 3 Size	Female 37° Flare Swivel
Connection 3 Tube Outside Diameter	14, 15, 16 mm

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
