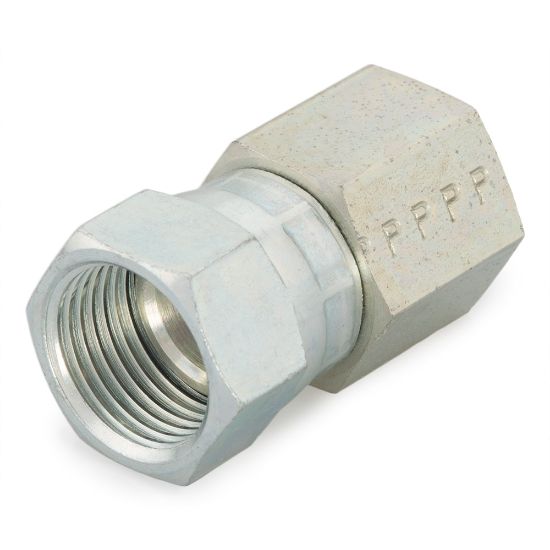

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 G6X-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	16 in stock
Partner Available:	158 in stock

SKU: 10 G6X-S

$43.76

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Dimensional Weight	0.07913669064748201 lb	Maximum Dynamic Pressure	5000 psi
Body Material	Steel	Shape	Straight
Connection Type	37° Flare	O-Ring Material	na
Specifications Met	SAE J514	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 1 Size	Female 37° Flare Swivel
Connection 2 Size	Female NPT/NPTF	Connection 3 Size	na
