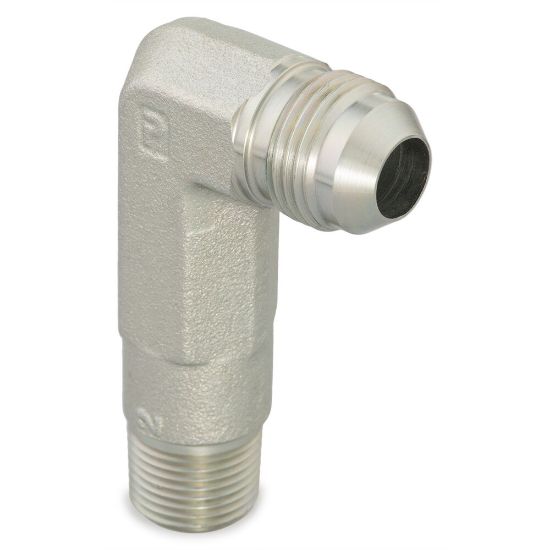

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 CCCTX-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	5 in stock
Partner Available:	24 in stock

SKU: 10 CCCTX-S

$36.93

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Body Material	Steel
Connection Type	37° Flare	O-Ring Material	na
Specifications Met	SAE J514	Shape	90° Elbow
Connection 2 Thread Size	1/2-14 inch	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	5/8 inch	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Male 37° Flare	Connection 2 Size	Male NPT/NPTF
Connection 3 Size	na
