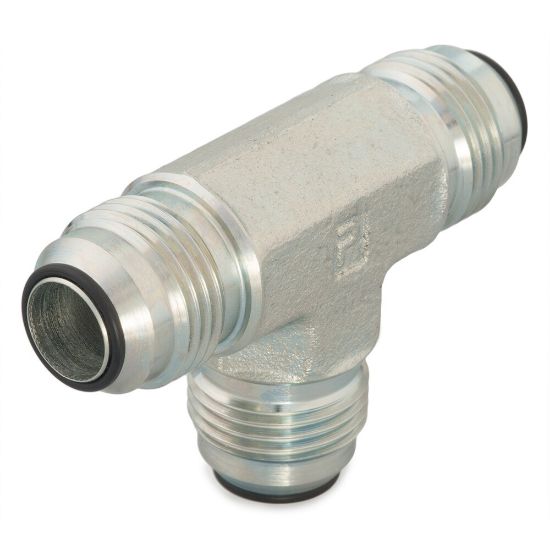

Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters - 6 JTXO-SS

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

Availability:	Backordered
Partner Available:	Backordered

SKU: 6 JTXO-SS

$110.13

Products specifications

Attribute name	Attribute value
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J514
Connection 3 Size	Male 37° Flare with O-ring Seal on Nose	Maximum Dynamic Pressure	6000 psi
Connection 3 Tube Outside Diameter	3/8 inch	Division	Tube Fittings Division
Connection Type	Soft Seal Stainless Steel 37° Flare	Body Material	Stainless Steel
Connection 2 Thread Size (inch)	na	Connection 1 Style	Male 37° Flare with O-ring Seal on Nose
Shape	Tee	Connection 1 Tube O.D. (inch)	3/8
Connection 2 Style	Male 37° Flare with O-ring Seal on Nose	Connection 2 Tube O.D. (inch)	3/8

Product resources

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
