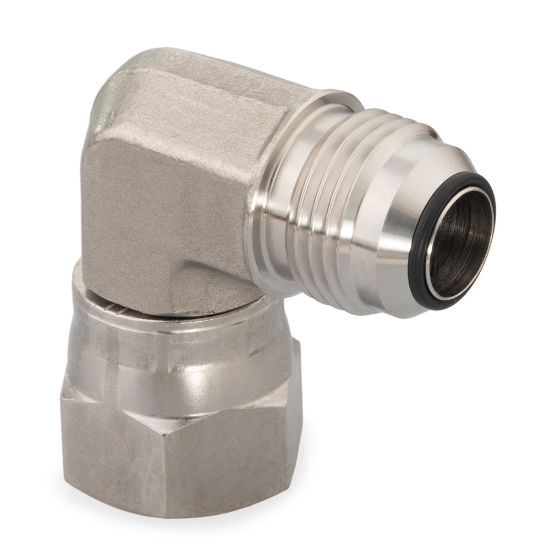

Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters - 12 C6XO-SS

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

Availability:	Backordered
Partner Available:	Backordered

SKU: 12 C6XO-SS

$161.66

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	5000 psi
Body Material	Stainless Steel	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J514	Connection Type	Soft Seal Stainless Steel 37° Flare
Connection 3 Tube Outside Diameter	na	Connection 3 Size	na
Shape	90° Elbow	Connection 2 Thread Size (inch)	na
Connection 1 Style	Male 37° Flare with O-ring Seal on Nose	Connection 2 Style	Female 37° Flare Swivel
Connection 1 Tube O.D. (inch)	3/4	Connection 2 Tube O.D. (inch)	3/4

Product resources

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
