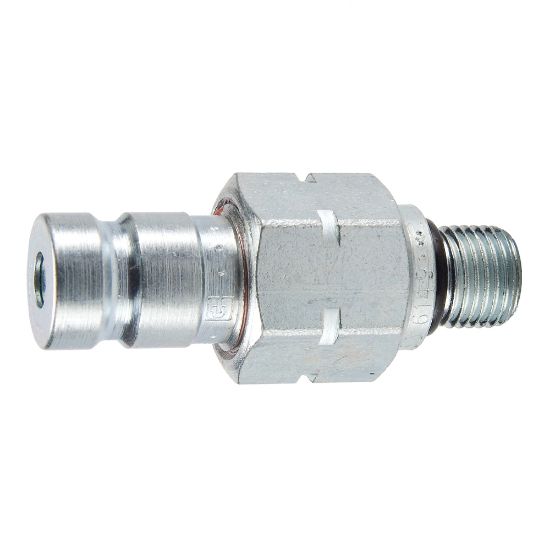

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - PD357

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered
Partner Available:	76 in stock

SKU: PD357

$24.36

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	6000 psi	Flow Rate	0.8 Gal/min
Seal Material	Nitrile	Plating Type	Zinc with clear trivalent chromate
Body Size	1/8 inch	Application	Diagnostic
Division	Quick Coupling Division	Valve Type	Non-spill
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Product Type	Push to Connect	Specifications Met	SAE J1502 / ISO 15171-1
Hex Size	0.69 inch	Body Material	Steel
Connection Type	Male Metric	Tube Size (inch)	na
Connection Thread Size (inch)	na	Coupling Half	Male Nipple
