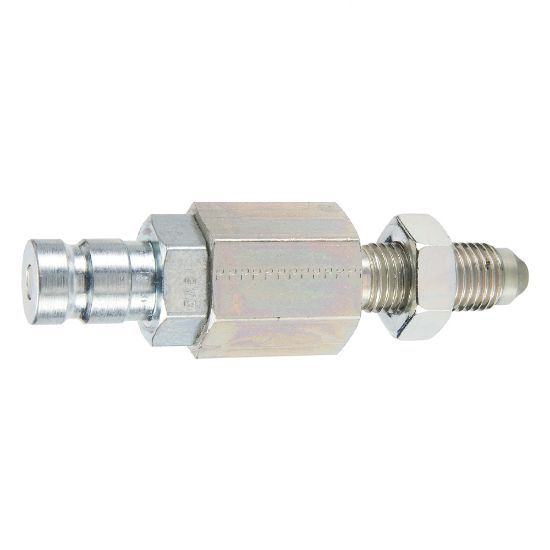

Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - PD355

Name: Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - PD355
SKU: PD355
Availability: OutOfStock

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:

Backordered

SKU: PD355

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Hex Size	0.81 inch	Body Material	Steel
Valve Type	Non-spill	Seal Material	Nitrile
Specifications Met	SAE J1502 / ISO 15171-1	Product Type	Push to Connect
Plating Type	Zinc with clear trivalent chromate	Body Size	1/8 inch
Division	Quick Coupling Division	Application	Diagnostic
Flow Rate	0.8 Gal/min	Maximum Operating Pressure	6000 psi
Connection Thread Size (inch)	1/2 - 20 UNF	Coupling Half	Male Nipple
Tube Size (inch)	5/16	Connection Type	Male bulkhead Triple-Lok
