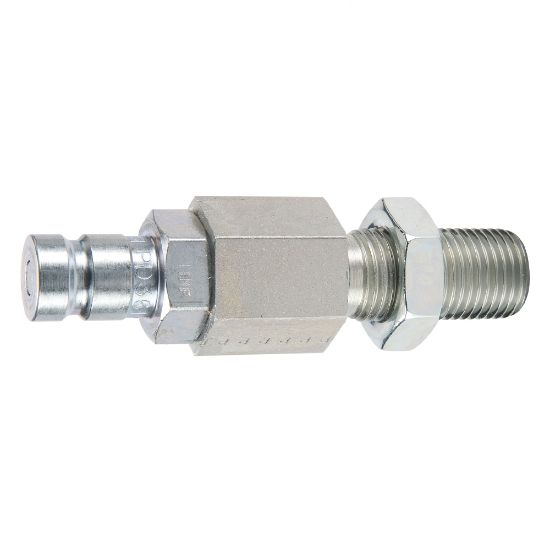

Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - PD346

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered
Partner Available:	102 in stock

SKU: PD346

$39.66

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	6000 psi	Product Type	Push to Connect
Seal Material	Nitrile	Plating Type	Zinc with clear trivalent chromate
Application	Diagnostic	Flow Rate	0.8 Gal/min
Body Size	1/8 inch	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Valve Type	Non-spill
Minimum Operating Temperature	-40 °F	Hex Size	0.81 inch
Specifications Met	SAE J1502 / ISO 15171-1	Body Material	Steel
Connection Thread Size (inch)	9/16 - 18 UNF	Connection Type	Male bulkhead Seal-Lok
Tube Size (inch)	1/4	Coupling Half	Male Nipple

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
