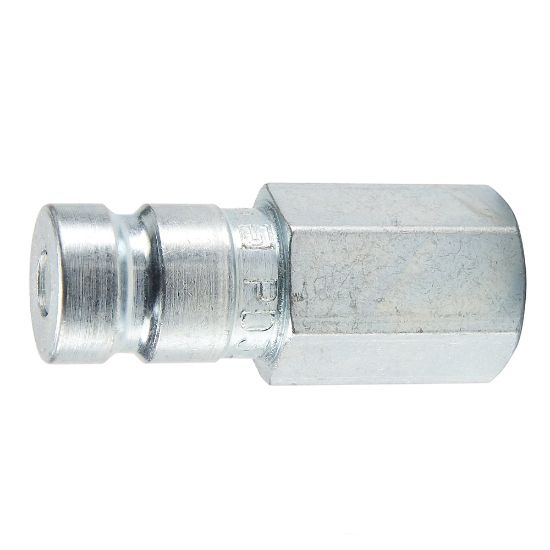

Picture of Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - PD342

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - PD342

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.
Availability:
36 in stock
Partner Available:343 in stock
SKU: PD342
$20.57
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Specifications MetSAE J1502Maximum Operating Temperature250 °F
Valve TypeNon-spillMinimum Operating Temperature-40 °F
Hex Size0.75 inchApplicationDiagnostics
Product TypePush to ConnectBody MaterialSteel
Maximum Operating Pressure6000 psiDimensional Weight0.01335431654676259 lb
Seal MaterialNitrilePlating TypeZinc with clear trivalent chromate
Flow Rate0.8 Gal/minDivisionQuick Coupling Division
Body Size1/8 inch
Tube Size (inch)naCoupling HalfMale Nipple
Connection Thread Size (inch)1/4 - 18Connection TypeFemale NPTF
Customers who bought this item also bought
Picture of PD Series Coupler - Female Pipe - PD242

PD Series Coupler - Female Pipe - PD242

Diagnostic Test Port
$60.43

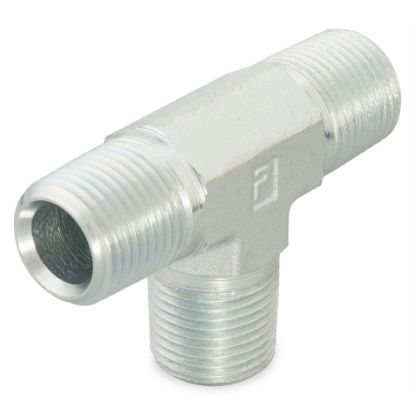

Picture of Pipe Fittings and Port Adapters - 1/4 RRS-S

Pipe Fittings and Port Adapters - 1/4 RRS-S

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.
$19.53

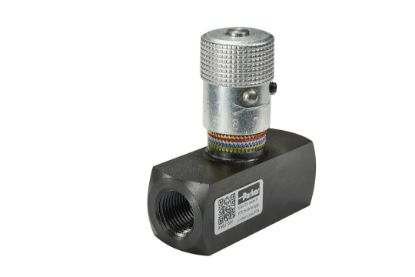

Picture of Colorflow In-Line General Purpose Needle Valve – N Series - N400S4
