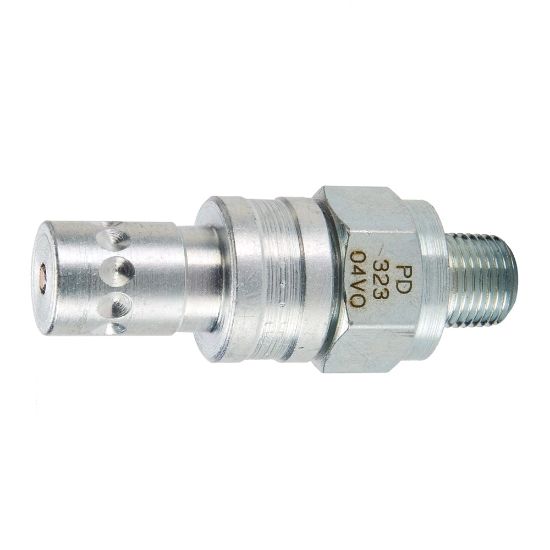

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - PD331

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered
Partner Available:	38 in stock

SKU: PD331

$69.52

Products specifications

Attribute name	Attribute value
Plating Type	Zinc with clear trivalent chromate	Application	Diagnostic
Maximum Operating Pressure	6000 psi	Flow Rate	0.8 Gal/min
Body Size	1/8 inch	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Hex Size	0.69 inch	Valve Type	Non-spill
Body Material	Steel	Seal Material	Nitrile
Product Type	Push to Connect	Specifications Met	SAE J1502 / ISO 15171-1
Connection Type	Male UNF	Tube Size (inch)	na
Coupling Half	Male Nipple	Connection Thread Size (inch)	3/8 - 24

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
