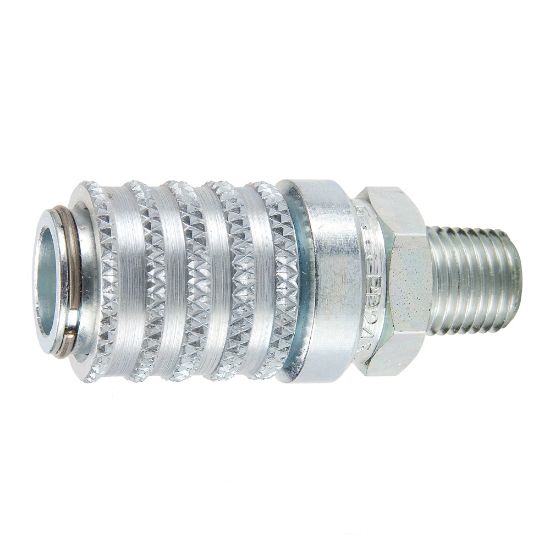

Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - PD243

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered
Partner Available:	127 in stock

SKU: PD243

$66.69

Products specifications

Attribute name	Attribute value
Specifications Met	SAE J1502 / ISO 15171-1	Product Type	Push to Connect
Maximum Operating Pressure	6000 psi	Flow Rate	0.8 Gal/min
Body Size	1/8 inch	Division	Quick Coupling Division
Application	Diagnostic	Seal Material	Nitrile
Minimum Operating Temperature	-40 °F	Hex Size	0.81 inch
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Valve Type	Non-spill	Maximum Operating Temperature	250 °F
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Female Coupler
Tube Size (inch)	na	Connection Type	Male NPTF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
