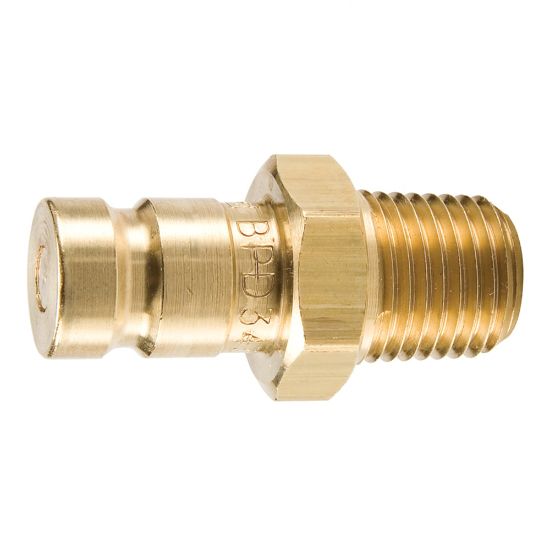

Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - BPD343Y

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered
Partner Available:	1 in stock

SKU: BPD343Y

$16.96

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400 °F	Plating Type	na
Minimum Operating Temperature	-15 °F	Division	Quick Coupling Division
Body Material	BRASS	Body Size	1/8 inch
Flow Rate	0.8 Gal/min	Application	Diagnostic
Maximum Operating Pressure	300 psi	Product Type	Push to Connect
Seal Material	Fluorocarbon	Specifications Met	SAE J1502 / ISO 15171-1
Hex Size	0.69 inch	Valve Type	Non-spill
Tube Size (inch)	na	Connection Type	Male NPTF
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Male Nipple
