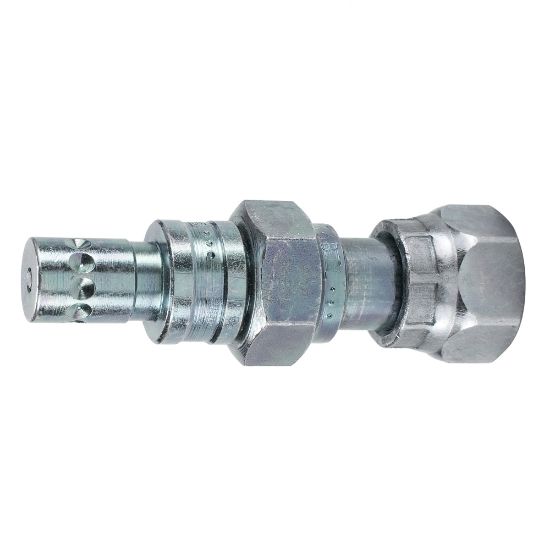

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port and Diagnostic Quick Couplings - PDP Series - PDP36BTL

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered
Partner Available:	Backordered

SKU: PDP36BTL

$104.12

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Operating Temperature	250 °F
Product Type	Push to Connect	Valve Type	Ball
Maximum Operating Pressure	6000 psi	Division	Quick Coupling Division
Application	Diagnostic	Body Size	1/8 inch
Seal Material	Nitrile	Minimum Operating Temperature	-40 °F
Hex Size	0.81 inch	Plating Type	Zinc with clear trivalent chromate
Coupling Half	Male Nipple	Connection Thread Size (inch)	na
Tube Size (inch)	3/8	Connection Type	Seal-Lok

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
