*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

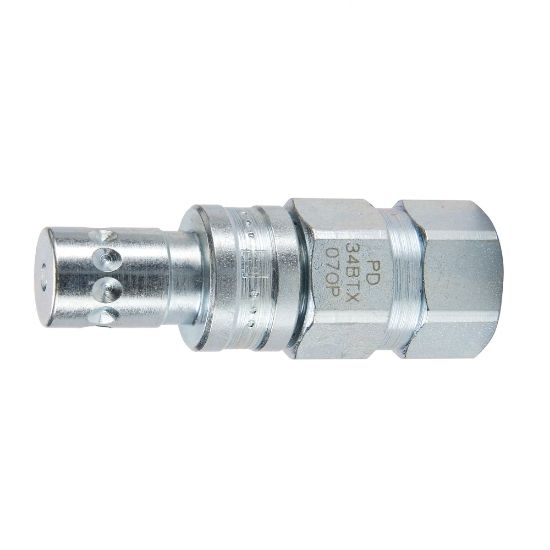

Test Port and Diagnostic Quick Couplings - PDP Series - PDP34BTX

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered
Partner Available:	2 in stock

SKU: PDP34BTX

$88.36

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Minimum Operating Temperature	-40 °F	Body Material	Steel
Valve Type	Ball	Hex Size	0.69 inch
Seal Material	Nitrile	Product Type	Push to Connect
Application	Diagnostic	Body Size	1/8 inch
Division	Quick Coupling Division	Maximum Operating Pressure	6000 psi
Connection Thread Size (inch)	na	Coupling Half	Male Nipple
Connection Type	Triple-Lok	Tube Size (inch)	1/4

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
