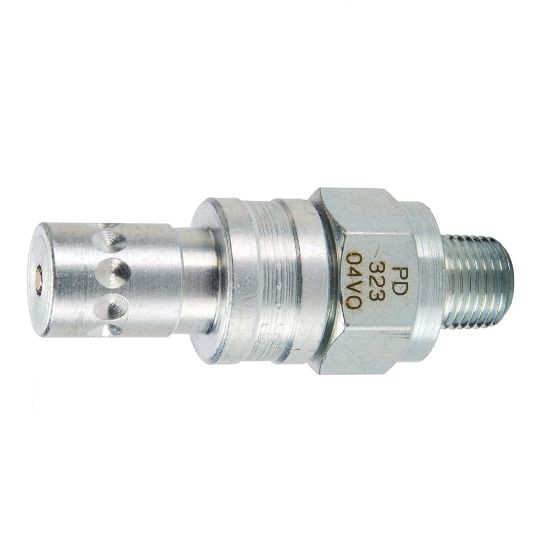

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port and Diagnostic Quick Couplings - PDP Series - PDP343

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered
Partner Available:	15 in stock

SKU: PDP343

$79.23

Products specifications

Attribute name	Attribute value
Valve Type	Ball	Body Material	Steel
Seal Material	Nitrile	Product Type	Push to Connect
Application	Diagnostic	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	6000 psi	Body Size	1/8 inch
Division	Quick Coupling Division	Hex Size	0.79 inch
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Male Nipple
Connection Type	Male NPTF	Tube Size (inch)	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
