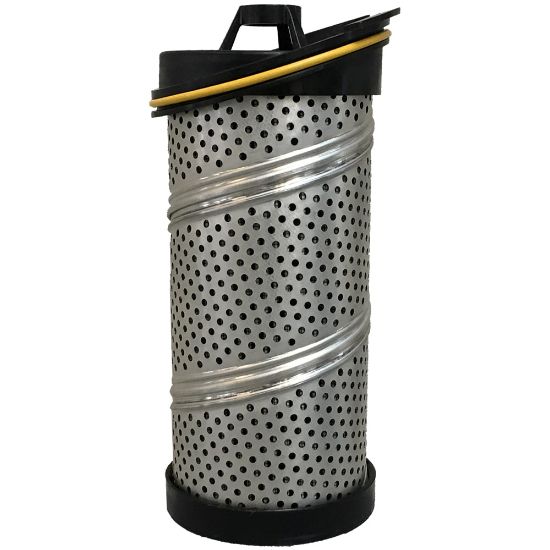

Tank Top Return Line Hydraulic Filter Replacement Elements – iProtect® GLF Series - 944838Q

Name: Tank Top Return Line Hydraulic Filter Replacement Elements – iProtect® GLF Series - 944838Q
SKU: 944838Q
Availability: OutOfStock

Parker GLF Series Replacement Elements are designed for use with GLF Series Tank Top Return Line Hydraulic Filters. The elements combine high efficiency filtration with low cost installation and are available with ratings ranging from 2 - 20 microns.

Availability:

Backordered

SKU: 944838Q

Qty:

Products specifications

Attribute name	Attribute value
For Fluid Type	Hydraulic Oil	Filter Type	Tanktop Return Line
Industry	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry<br/>• Power	Technology	Filtration
Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.	Flow Rate	0 to 1700 L/min
Application	• Deck and mobile cranes<br/>• Firefighting equipment<br/>• Forwarders<br/>• Hydraulic presses<br/>• Marine steering units<br/>• Power packs<br/>• Waste management, dump and fork lift trucks<br/>• Excavators<br/>Harvesters<br/>• Waste b	Operating Temperature	-40 to 100 °C
Operating Pressure	150 psi	Product Type	Hydraulic Oil Filter
Division	Hydraulic & Industrial Process Filtration Division EMEA	Filter Element Type	Quantumfiber™
Division	Hydraulic & Industrial Process Filtration Division EMEA	Product Series	iProtect® GLF Series Replacement Elements
Brand	Parker
Micron Rating	2 µm	For Use With	GLF size 3
Length	Length 1	Bypass Valve Pressure Rating	3.5 bar
Seal Material	Nitrile
