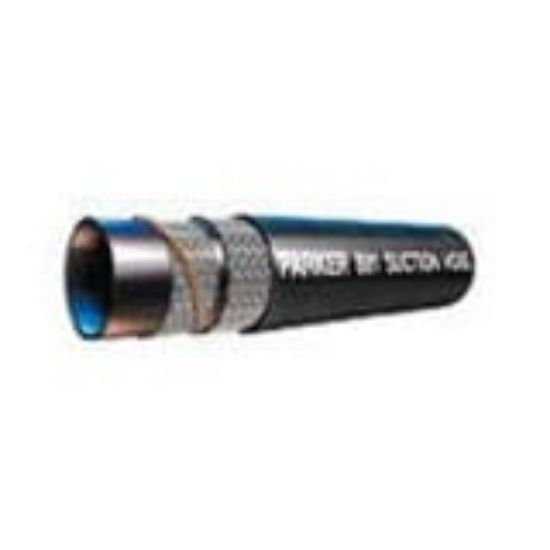

Suction and Return Line Hose 62-300 PSI – 881 Hose - 881-32

Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Availability:	88 in stock
Partner Available:	2457 in stock

SKU: 881-32

$51.04

Products specifications

Attribute name	Attribute value
Weight	1.89 kg/m	Hose Inner Tube Material	Synthetic Rubber
Cover Material	Synthetic Rubber	Specifications Met	SAE 100R4
Vacuum Pressure Rating	28 Inch-Hg	Application	Lubricating Oils
Hose Reinforcement Material	Multiple Braids of Fiber with Wire Helix	Minimum Bend Radius	305 mm
Inside Diameter	50.8 mm	Outside Diameter	2.480 inch
Minimum Operating Temperature	-40 °C	Division	Hose Products Division
Nominal Hose Inside Diameter	50 mm	Compatible Fitting	88 Series
Media	Petroleum Hydraulic Fluids	Maximum Operating Pressure	0.7 MPa
Maximum Operating Temperature	257 °F	Design Factor	4:1
Hose I.D. (size)	-32

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
