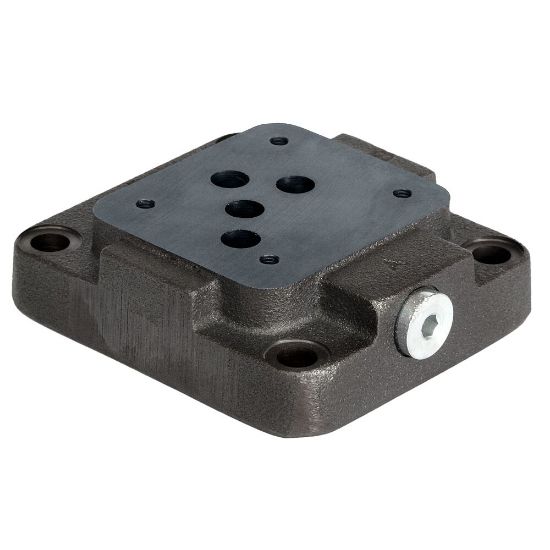

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Subplates for Directional Control Valves - Series A - A104M

Name: Subplates for Directional Control Valves - Series A - A104M
SKU: A104M
Availability: OutOfStock

Subplates series A are used for directional control valves with metric threads. They are available in size NG06/CETOP 03 and NG10/CETOP 05.

Availability:

Backordered

SKU: A104M

Qty:

Products specifications

Attribute name	Attribute value
Division	Industrial Systems Division Europe	Maximum Operating Temperature	60 °C
Body Material	Steel	Maximum Operating Pressure	350 bar
Maximum Flow Rate	n/a	Seal Material	n/a
Minimum Operating Temperature	-25 °C	Actuation Type	n/a
Function	4-way	Mounting Type	Manifold
For Fluid Type	Hydraulic Oil According to DIN 51524 ... 535	Product Series	Plate
Port Connection	NG10/CETOP 05	Connection Thread Size	P, A, B, T = M22 x 1.5 MM as per ISO 6149

Product resources

Compliance, Certifications & Safety

CERTIFICATE - Position Paper ISDE 2006/42/EC and EN ISO 13849
CERTIFICATE - DIN ISO 9001:2015 Certificate ISDE

Literature and Reference Materials

CATALOGUE - Hydraulic Valves Industrial Standard, Offline Version--MSG11-3500/UK
CATALOGUE - Subplate Series A
