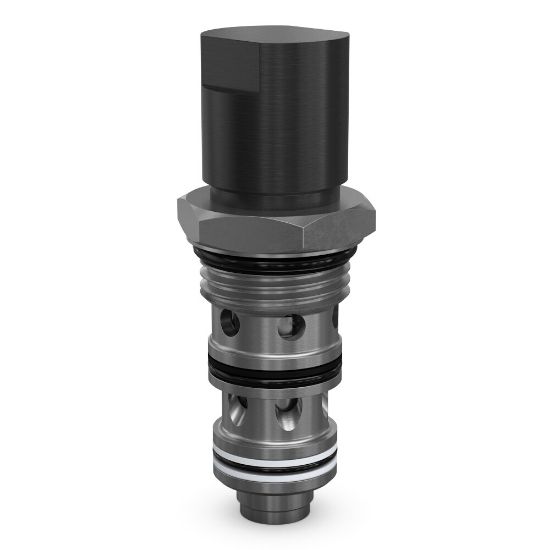

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Standard Pilot Assisted Load Control Valves - MHC-022-SJNK-00B

Name: Standard Pilot Assisted Load Control Valves - MHC-022-SJNK-00B
SKU: MHC-022-SJNK-00B
Availability: OutOfStock

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:

Backordered

SKU: MHC-022-SJNK-00B

Qty:

Products specifications

Attribute name	Attribute value
Pressure Control Sensitivity	N/A psi	Port Size	n/a
Maximum Operating Temperature	+121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Pilot Location	External	Mounting Type	Threaded Cartridge Valve
Actuation Type	Pilot Operated	Seal Material	Nitrile
Flow Rate	25 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-34 to +121 °C	Body Material	n/a
Maximum Operating Pressure	5000 psi	Maximum Flow Rate	25 Gal/min
Holding Pressure	5000 psi	Minimum Operating Temperature	-34 °C
Leak Rate	5 @ 80% of setting drops/min	Pilot Pressure Ratio	10:1
Maximum Inlet Pressure Rating	5000 psi	Division	Hydraulic Cartridge Systems Division
Weight	0.88 lb	Adjustment Mechanism	Shimmed (non-adjustable)
Pressure Control Range	N/A bar	Function	Counterbalance Valve
Cavity Size	CDD-1036	Division	Hydraulic Systems Division
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	102-108 Nm
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Flow Direction	Cylinder port 2, Valve port 3, Pilot port 1
Port Size	n/a	Pilot Pressure Ratio	10:1
Mounting Type	Threaded Cartridge Valve	Pressure Control Range	N/A
Adjustment Mechanism	Shimmed (non-adjustable)	Seal Material	Nitrile
Maximum Flow Rate	25 GAL/MIN, 93.75 L/MIN	Holding Pressure	5000 PSI, 350 BAR
