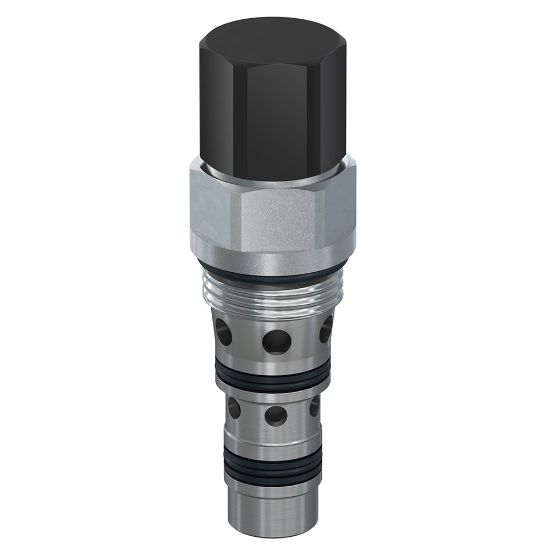

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Standard Pilot Assisted Load Control Valves - MHC-010-SFNE-00F

Name: Standard Pilot Assisted Load Control Valves - MHC-010-SFNE-00F
SKU: MHC-010-SFNE-00F
Availability: OutOfStock

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:

Backordered

SKU: MHC-010-SFNE-00F

Qty:

Products specifications

Attribute name	Attribute value
Port Size	n/a	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-26 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Pilot Location	External	Actuation Type	Pilot Operated
Weight	0.88 lb	Maximum Inlet Pressure Rating	5000 psi
Maximum Flow Rate	10 Gal/min	Function	Counterbalance Valve
Mounting Type	Threaded Cartridge Valve	Pilot Pressure Ratio	7:1
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Flow Rate	37.5 L/min
Leak Rate	5 @ 80% of setting drops/min	Cavity Size	CDD-1010
Flow Direction	Cylinder port 2, Valve port 3, Pilot port 1	Holding Pressure	1500 psi
Installation Torque	68-75 Nm	Adjustment Mechanism	Shimmed (non-adjustable)
Pressure Control Range	N/A bar	Pressure Control Sensitivity	N/A psi
Port Size	n/a	Seal Material	Fluorocarbon
Mounting Type	Threaded Cartridge Valve	Pilot Pressure Ratio	7:1
Maximum Flow Rate	10 GAL/MIN, 37.5 L/MIN	Holding Pressure	1500 PSI, 103.4 BAR
Adjustment Mechanism	Shimmed (non-adjustable)	Pressure Control Range	N/A
