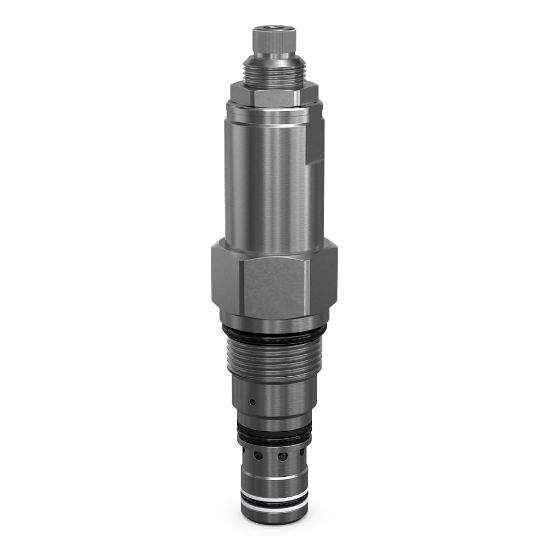

Standard Pilot Assisted Load Control Valves - CB101CT10

Name: Standard Pilot Assisted Load Control Valves - CB101CT10
SKU: CB101CT10
Availability: OutOfStock

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:

Backordered

SKU: CB101CT10

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Seal Material	Nitrile
Port Size	n/a	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Leak Rate	5
For Fluid Type	Synthetic Hydraulic Fluids	Pilot Location	External
Valve Material	Steel	Installation Torque	16 lb-ft
Maximum Operating Temperature	121 °C	Actuation Type	Pilot Operated
Minimum Operating Temperature	-34 °C	Weight	0.5 lb
Adjustment Mechanism	Tamper Resistant	Port Thread Size	n/a
Cavity Size	C10-3	Maximum Flow Rate	12 Gal/min
Flow Rate	45 L/min	Function	Counterbalance Valve
Mounting Type	Threaded Cartridge Valve	Pilot Pressure Ratio	7:1
Filter Efficiency Rating	ISO 4406:1999 Code 18/16/13	Flow Direction	Cylinder port 1
Holding Pressure	1000 psi	Operating Temperature	-34° to +121° °C
Pressure Control Range	500 to 1500 psi	Pressure Control Sensitivity	n/a
Maximum Inlet Pressure Rating	380 bar
Port Size	n/a	Seal Material	Nitrile
Adjustment Mechanism	Tamper Resistant	Mounting Type	Threaded Cartridge Valve
Maximum Flow Rate	12 GAL/MIN, 45 L/MIN	Holding Pressure	1000 PSI, 69 BAR
Pilot Pressure Ratio	7:1	Pressure Control Range	500-1500 PSI, 34.5-103.4 BAR
