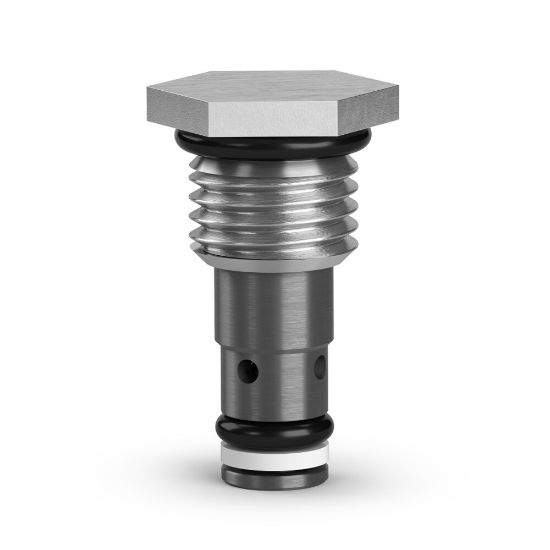

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Standard Check Valves - D0WB2-1.0N

Name: Standard Check Valves - D0WB2-1.0N
SKU: D0WB2-1.0N
Availability: OutOfStock

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:

Backordered

SKU: D0WB2-1.0N

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.012 kg	Seal Material	Nitrile
Maximum Operating Pressure	6000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Synthetic Hydraulic Fluids	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-34 °C
Actuation Type	Pressure Sensing	Maximum Flow Rate	6 L/min
Division	Mobile Hydraulic Systems Division Europe	Valve Material	Hardened Steel (all operating parts)
Operating Temperature	-34 to 121 °C	Maximum Inlet Pressure Rating	6000 psi
Cracking Pressure	15 psi	Function	Standard Check
Leak Rate	< 3 drops/min @ 6000 Psi (420 bar)	Flow Direction	1-2 Free Flow
Flow Rate	0.9 Gal/min @ 100 Psi (7 bar) Nominal	Cavity Size	CAV0W-2
Installation Torque	7 lb-ft
Seal Material	Nitrile	Cracking Pressure	15 PSI, 1 BAR
Maximum Flow Rate	1.6 GAL/MIN, 6 LPM
