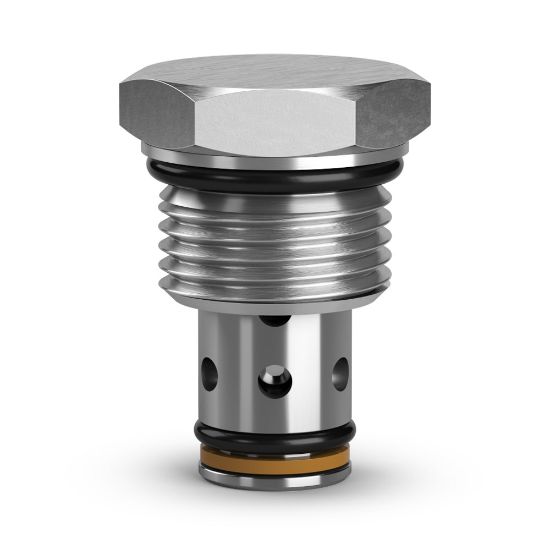

Standard Check Valves - D02B2-6.0V

Name: Standard Check Valves - D02B2-6.0V
SKU: D02B2-6.0V
Availability: OutOfStock

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:

Backordered

SKU: D02B2-6.0V

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	420 bar	Maximum Operating Temperature	204 °C
Weight	0.11 lb	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-15 °F	Operating Temperature	-26 to 204 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	For Fluid Type	Mineral-based Hydraulic Fluids
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Flow Rate	80 L/min
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Cavity Size	C08-2	Valve Material	Hardened Steel (all operating parts)
Installation Torque	40 Nm	Maximum Inlet Pressure Rating	6000 psi
Function	Standard Check	Flow Rate	12 Gal/min @ 100 Psi (7 bar) Nominal
Leak Rate	< 3 drops/min @ 6000 Psi (420 bar)	Flow Direction	2-1 Checked
Cracking Pressure	6 bar
Seal Material	Fluorocarbon	Maximum Flow Rate	21 GAL/Min, 80 L/MIN
Cracking Pressure	87 PSI, 6 BAR
