*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

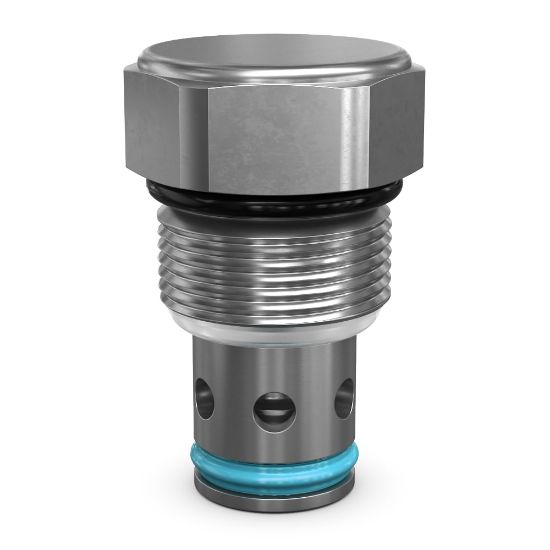

Standard Check Valves - CVH103P65

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:	Backordered
Partner Available:	18 in stock

SKU: CVH103P65

$22.75

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-35 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Temperature	93 °C	Maximum Flow Rate	60 L/min
Actuation Type	Pressure Sensing	Cavity Size	C10-2
Maximum Inlet Pressure Rating	5000 psi	Seal Material	D-Ring (Standard)
Operating Temperature	-37 to 93 °C	Weight	0.2 lb
Cracking Pressure	4.5 bar	Leak Rate	2
Function	Standard Check	Installation Torque	51 to 55 lb-ft
Flow Direction	2-1 Checked
Seal Material	D-Ring (Standard)	Cracking Pressure	65 PSI, 4.5 BAR
Maximum Flow Rate	16 GAL/MIN, 60 L/MIN
