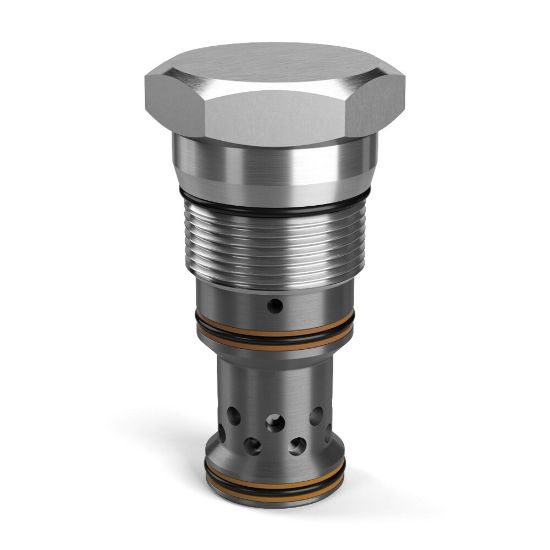

Spool Type Logic Element - R08E3-5.0N

Name: Spool Type Logic Element - R08E3-5.0N
SKU: R08E3-5.0N
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: R08E3-5.0N

Qty:

Products specifications

Attribute name	Attribute value
Switching Pressure	73 psi	Seal Material	Nitrile
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	6000 psi
Vented	Internal	Installation Torque	150 Nm
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Dampening Orifice Included	No	Function	Logic Valve
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	90 @ 1450 PSI (BAR) cm3/min
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-30 °F
Body Material	n/a	Operation Type	Pilot Operated
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Actuation Type	Pilot to Close
Cavity Size	C20-3S	Maximum Flow Rate	500 L/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-34 to +121 °C
Maximum Operating Temperature	+250 °F	Weight	1.52 lb
Flow Direction	Nose to Side (1-2)	Maximum Operating Pressure	420 bar
Pilot Location	External	Flow Rate	90 @ 100 PSI (7 BAR) Nominal Gal/min
Seal Material	Nitrile	Maximum Flow Rate	132 GAL/MIN, 500 L/MIN
Configuration	Normally Closed	Flow Direction	Nose to Side (1-2)
Dampening Orifice Included	No	Switching Pressure	73 PSI, 5 BAR
