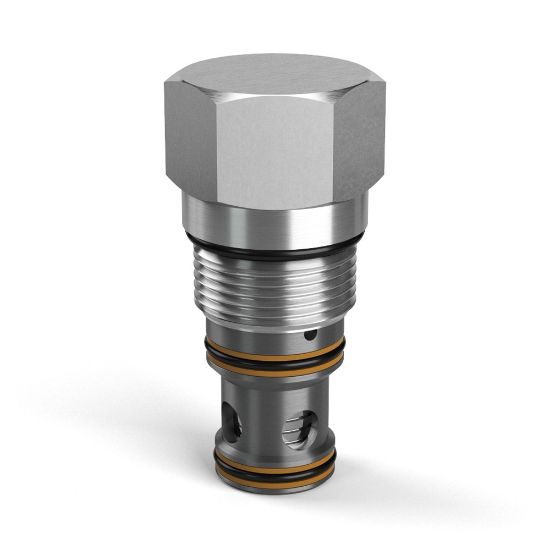

Spool Type Logic Element - R06F3-15.0V

Name: Spool Type Logic Element - R06F3-15.0V
SKU: R06F3-15.0V
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: R06F3-15.0V

Qty:

Products specifications

Attribute name	Attribute value
Operation Type	Pilot Operated	Seal Material	Fluorocarbon
Maximum Operating Pressure	6000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Flow Direction	Nose to Side (1-2)
Minimum Operating Temperature	-26 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Vented	Internal	Function	Logic Valve
Actuation Type	Vent to Open	Pilot Location	Internal
Dampening Orifice Included	Yes	Cavity Size	C16-3S
Maximum Flow Rate	106 Gal/min	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	100 Nm	Maximum Inlet Pressure Rating	420 bar
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.84 lb	Switching Pressure	218 psi
Flow Rate	71 @ 100 PSI (7 BAR) Nominal Gal/min	Leak Rate	90 @ 1450 PSI (BAR) cm3/min
Seal Material	Fluorocarbon	Flow Direction	Nose to Side (1-2)
Configuration	Normally Closed	Dampening Orifice Included	Yes
Switching Pressure	218 PSI, 15 BAR	Maximum Flow Rate	106 GAL/MIN, 400 L/MIN
