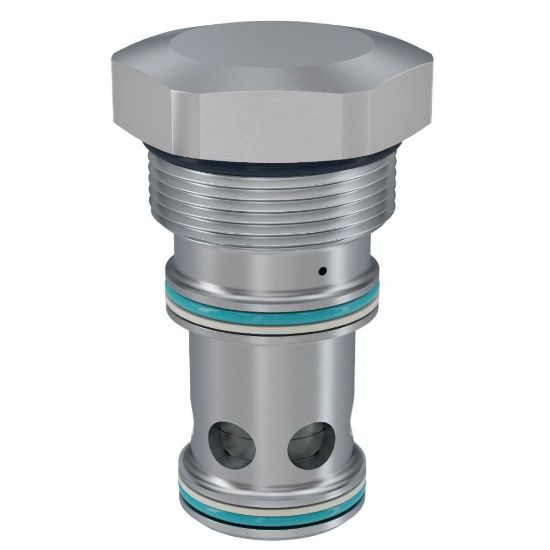

Spool Type Logic Element - 20SLC2-A-150V

Name: Spool Type Logic Element - 20SLC2-A-150V
SKU: 20SLC2-A-150V
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: 20SLC2-A-150V

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Maximum Operating Pressure	240 bar
Operation Type	Pilot Operated	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Configuration	Normally Closed (NC)
Actuation Type	Pilot to Close	Flow Direction	Nose to Side (1-2)
Minimum Operating Temperature	-26 °C	Operating Temperature	-26 to 204 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Vented	Internal	Function	Logic Valve
Leak Rate	82	For Fluid Type	Synthetic Hydraulic Fluids
Pilot Location	External	Valve Material	Hardened Steel
Switching Pressure	150 psi	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Inlet Pressure Rating	240 bar	Dampening Orifice Included	No
Weight	1.78 lb	Cavity Size	C20-3S
Maximum Flow Rate	80 Gal/min	Installation Torque	83 lb-ft
Seal Material	Fluorocarbon	Flow Direction	Nose to Side (1-2)
Configuration	Normally Closed	Switching Pressure	150 PSI, 10.3 BAR
Dampening Orifice Included	No	Maximum Flow Rate	80 GAL/MIN, 303 L/MIN
