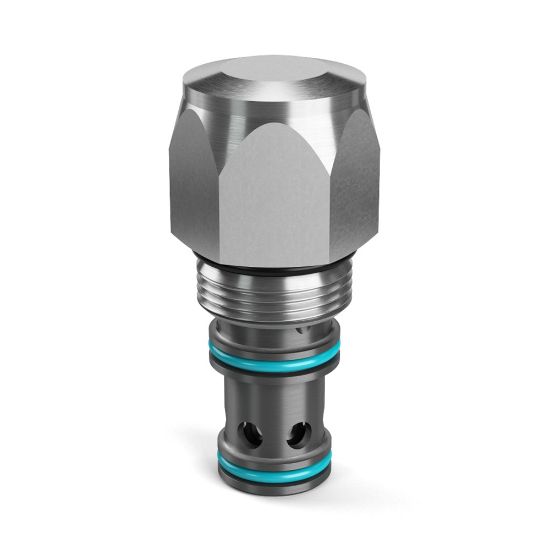

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Spool Type Logic Element - 16SLC2-B-150V

Name: Spool Type Logic Element - 16SLC2-B-150V
SKU: 16SLC2-B-150V
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: 16SLC2-B-150V

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Maximum Operating Pressure	240 bar
Operation Type	Pilot Operated	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Configuration	Normally Closed (NC)
Flow Direction	Nose to Side (1-2)	Minimum Operating Temperature	-15 °F
Operating Temperature	-26 to 204 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Function	Logic Valve
Leak Rate	82	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Hardened Steel	Switching Pressure	150 psi
Filter Efficiency Rating	SAE Class 4	Maximum Inlet Pressure Rating	3500 psi
Vented	External	Actuation Type	Vent to Open
Pilot Location	Internal	Dampening Orifice Included	Yes
Maximum Flow Rate	50 Gal/min	Weight	0.78 lb
Cavity Size	C16-3S	Installation Torque	40 lb-ft
Seal Material	Fluorocarbon	Flow Direction	Nose to Side (1-2)
Configuration	Normally Closed	Switching Pressure	150 PSI, 10.3 BAR
Dampening Orifice Included	Yes	Maximum Flow Rate	50 GAL/MIN, 189 L/MIN
