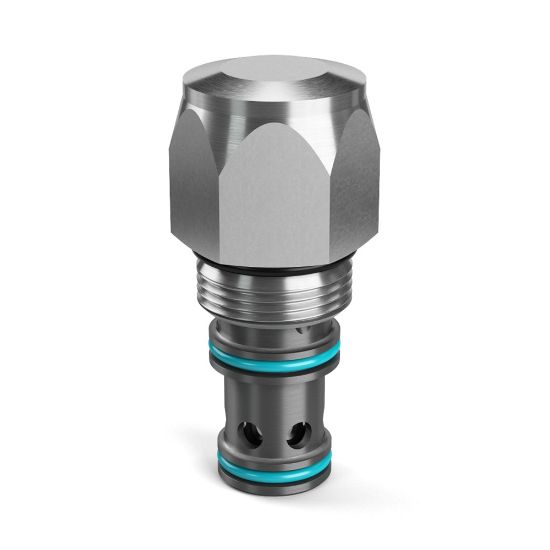

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Spool Type Logic Element - 16SLC2-A-75V

Name: Spool Type Logic Element - 16SLC2-A-75V
SKU: 16SLC2-A-75V
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: 16SLC2-A-75V

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Operation Type	Pilot Operated
Maximum Operating Temperature	204 °C	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Configuration	Normally Closed (NC)	Actuation Type	Pilot to Close
Flow Direction	Nose to Side (1-2)	Maximum Operating Pressure	3500 psi
Minimum Operating Temperature	-15 °F	Operating Temperature	-15 to 400 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Vented	Internal	Function	Logic Valve
Leak Rate	82	For Fluid Type	Synthetic Hydraulic Fluids
Pilot Location	External	Valve Material	Steel
Switching Pressure	5.2 bar	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Inlet Pressure Rating	3500 psi	Dampening Orifice Included	No
Maximum Flow Rate	50 Gal/min	Weight	0.78 lb
Cavity Size	C16-3S	Installation Torque	40 lb-ft
Seal Material	Fluorocarbon	Flow Direction	Nose to Side (1-2)
Configuration	Normally Closed	Switching Pressure	75 PSI, 5.2 BAR
Dampening Orifice Included	No	Maximum Flow Rate	50 GAL/MIN, 189 L/MIN
