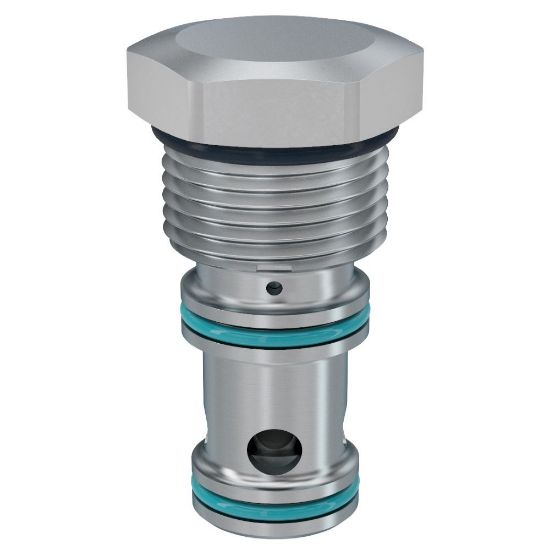

Spool Type Logic Element - 10SLC3-A-100V

Name: Spool Type Logic Element - 10SLC3-A-100V
SKU: 10SLC3-A-100V
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: 10SLC3-A-100V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.14 kg	Flow Rate	n/a
Operation Type	Pilot Operated	Maximum Operating Temperature	204 °C
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Actuation Type	Pilot to Close
Maximum Flow Rate	15 Gal/min	Maximum Operating Pressure	3500 psi
Minimum Operating Temperature	-26 °C	Operating Temperature	-15 to 400 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Vented	Internal	Function	Logic Valve
Leak Rate	82	Cavity Size	C10-3S
For Fluid Type	Mineral-based Hydraulic Fluids	Pilot Location	External
Valve Material	Steel	Switching Pressure	6.9 bar
Installation Torque	16 lb-ft	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Inlet Pressure Rating	240 bar	Dampening Orifice Included	No
Configuration	Normally Open (NO)	Flow Direction	Side to Nose (2-1)
Seal Material	Fluorocarbon	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Switching Pressure	100 PSI, 6.9 BAR	Dampening Orifice Included	No
Configuration	Normally Open	Flow Direction	Side to Nose (2-1)
