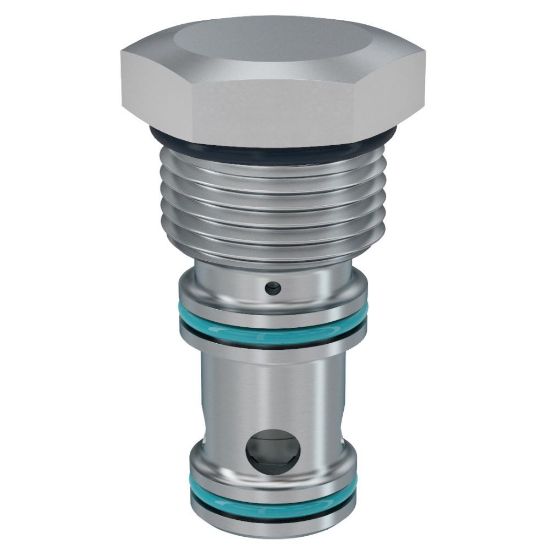

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Spool Type Logic Element - 10SLC2-B-150V

Name: Spool Type Logic Element - 10SLC2-B-150V
SKU: 10SLC2-B-150V
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: 10SLC2-B-150V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.14 kg	Flow Rate	n/a
Maximum Operating Pressure	240 bar	Operation Type	Pilot Operated
Maximum Operating Temperature	204 °C	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Configuration	Normally Closed (NC)	Flow Direction	Nose to Side (1-2)
Maximum Flow Rate	15 Gal/min	Minimum Operating Temperature	-26 °C
Operating Temperature	-15 to 400 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Function	Logic Valve
Leak Rate	82	Cavity Size	C10-3S
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Hardened Steel
Switching Pressure	10.2 bar	Installation Torque	16 lb-ft
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Inlet Pressure Rating	240 bar
Vented	External	Actuation Type	Vent to Open
Pilot Location	Internal	Dampening Orifice Included	Yes
Seal Material	Fluorocarbon	Flow Direction	Nose to Side (1-2)
Maximum Flow Rate	15 GAL/MIN, 57 L/MIN	Configuration	Normally Closed
Switching Pressure	150 PSI, 10.3 BAR	Dampening Orifice Included	Yes
