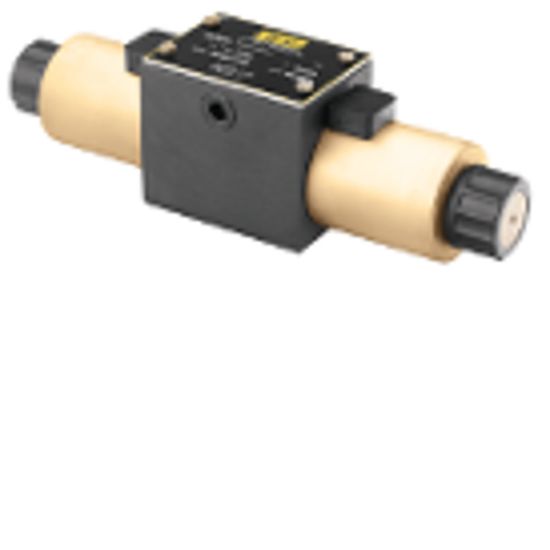

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Solenoid Operated Directional Control Valve - D3DW Series - D3DW20DVTPZ5

Name: Solenoid Operated Directional Control Valve - D3DW Series - D3DW20DVTPZ5
SKU: D3DW20DVTPZ5
Availability: OutOfStock

Parker’s D3DW directional control valves are high performance, 5-chamber, direct operated, wet armature, solenoid controlled, 3 or 4-way valves.

Availability:

Backordered

SKU: D3DW20DVTPZ5

Qty:

Products specifications

Attribute name	Attribute value
Mounting Type	Subplate	Actuation Type	Hydraulic Pressure
Minimum Operating Temperature	-4 °F	Maximum Operating Temperature	140 °F
Maximum Operating Pressure	5000 psi	Division	Hydraulic Valve Systems Division
Weight	16 lb	Body Material	Gray Iron
Additional Options	Consult catalog for additional features.	Spool Position	2-Position
Spool Code	Closed Crossover	Seal Material	Flourocarbon
Maximum Flow Rate	33 Gal/min	Size	NG10
Options	Signal Lights	Valve Type	5-Chamber Body Solenoid Operated Directional Control Valve
Connection Type	DIN with Plug	Power Supply Voltage	220-240V AC 50/60Hz
Coil Specifications Met	Omit to Standard Valve
