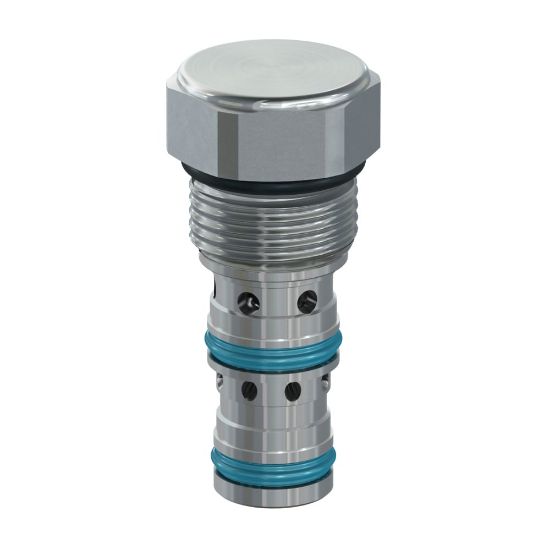

Single Pilot Operated, Pilot to Open Check Valves - CPH104P15

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Availability:	Backordered
Partner Available:	Backordered

SKU: CPH104P15

$55.00

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Cracking Pressure	1 bar	Minimum Operating Temperature	-37 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Steel
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Operating Temperature	93 °C
Actuation Type	Pilot Operated	Maximum Flow Rate	30 L/min
Maximum Inlet Pressure Rating	350 bar	Seal Material	D-Ring (Standard)
Operating Temperature	-37 to 93 °C	Cavity Size	C10-3
Weight	0.2 lb	Pilot Pressure Ratio	4:1
Function	Single Pilot to Open Check	Leak Rate	2
Flow Direction	2-3 Free Flow	Pilot Location	1
Installation Torque	65 Nm
Seal Material	D-Ring (Standard)	Cracking Pressure	15 PSI, 1 BAR
Maximum Flow Rate	8 GAL/MIN, 30 L/MIN
