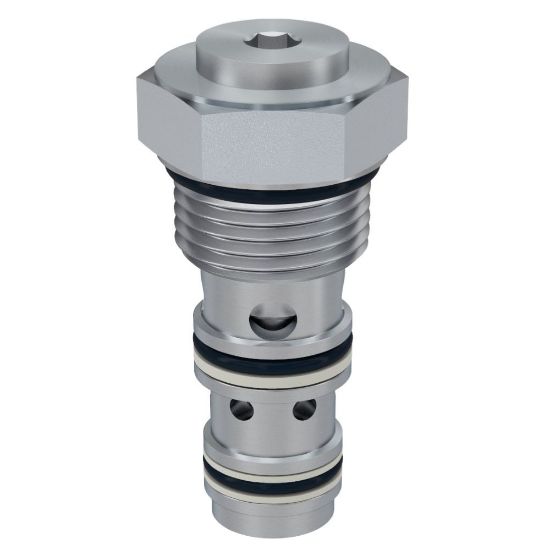

Single Pilot Operated, Pilot to Open Check Valves - CP084P85V

Name: Single Pilot Operated, Pilot to Open Check Valves - CP084P85V
SKU: CP084P85V
Availability: OutOfStock

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Availability:

Backordered

SKU: CP084P85V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.05 kg	Flow Rate	n/a
Maximum Operating Pressure	207 bar	Maximum Operating Temperature	204 °C
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-15 °F
Operating Temperature	-26 to 204 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Leak Rate	5
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Hardened Steel
Filter Efficiency Rating	SAE Class 4	Actuation Type	Pilot Operated
Maximum Flow Rate	5 Gal/min	Maximum Inlet Pressure Rating	207 bar
Cavity Size	C08-3	Pilot Pressure Ratio	3:1
Function	Single Pilot to Open Check	Cracking Pressure	85 psi
Flow Direction	2-3 Free Flow	Pilot Location	1
Installation Torque	23 lb-ft
Seal Material	Fluorocarbon	Cracking Pressure	85 PSI, 5.9 BAR
Maximum Flow Rate	5 GAL/MIN, 19 L/MIN
