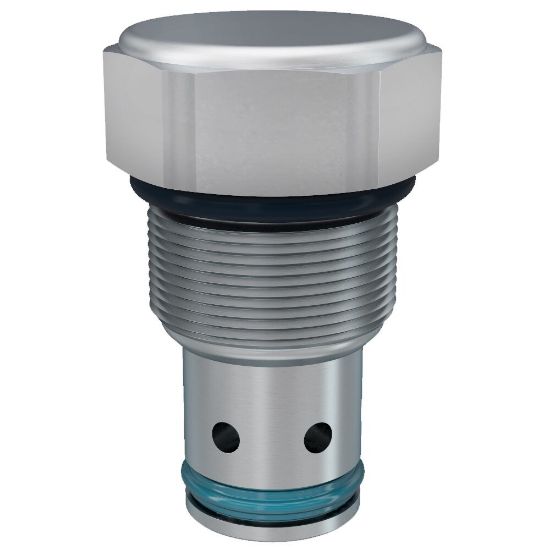

Side to Nose Check Valves - CVH104PV

Parker check valves designed for “reverse” flow from the side port (port 2) to the end port (port 1) from 19 to 500 lpm (5 to 132 gpm) and pressures up to 420 bar (6,000 psi), allowing manifold space optimization while achieving superior performance.

Availability:	Backordered
Partner Available:	Backordered

SKU: CVH104PV

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Maximum Operating Temperature	204 °C
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-26 °C
Operating Temperature	-15 to 400 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Steel	Filter Efficiency Rating	SAE Class 4
Maximum Flow Rate	5 Gal/min	Actuation Type	Pressure Sensing
Cavity Size	C10-2	Maximum Inlet Pressure Rating	350 bar
Flow Rate	34 L/min	Leak Rate	2
Weight	0.18 lb	Function	Side to Nose Check
Installation Torque	69 to 75 Nm	Flow Direction	1-2 Checked
Cracking Pressure	45 psi	Minimum Operating Pressure	5000 psi
Seal Material	Fluorocarbon	Cracking Pressure	45 PSI, 3.1 BAR
Maximum Flow Rate	5 GAL/MIN, 34 L/MIN
