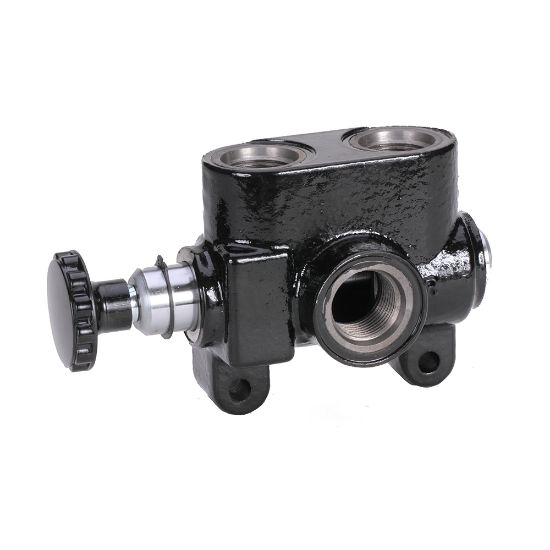

Selector Valve - S & H Series - H-75

Name: Selector Valve - S & H Series - H-75
SKU: H-75
Availability: OutOfStock

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.

Availability:

Backordered

SKU: H-75

Qty:

Products specifications

Attribute name	Attribute value
Connection Type	NPT	Adjustment Mechanism	Knob
Maximum Operating Pressure	2000 psi	For Fluid Type	Hydraulic Oil
Minimum Operating Temperature	-40 °F	Body Material	High Strength Cast Iron
Division	Hydraulic Valve Systems Division	Maximum Operating Temperature	+200 °F
Actuation Type	Manual	Maximum Flow Rate	30
Connection Size	3/4"	Seal Material	Nitrile
Weight	5.4 lb	Function	Selector Valve
Port Size	3/4" NPT	Style	Float Selector
Mounting	In-Line
