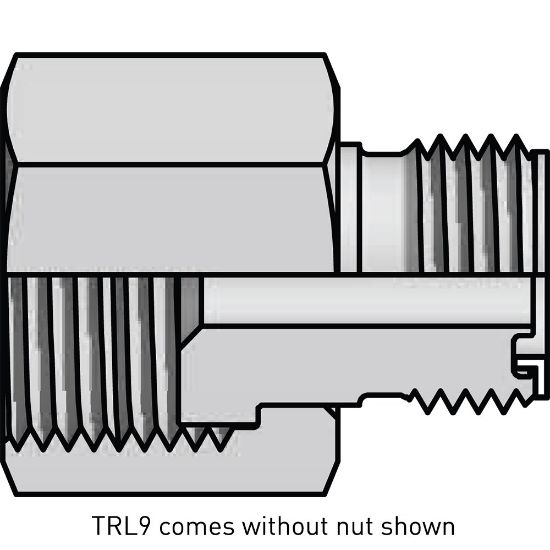

Seal-Lok Xtreme Metal Face Seal Tube Fittings and Adapters - 12-6 TRL9-SS ETS

Name: Seal-Lok Xtreme Metal Face Seal Tube Fittings and Adapters - 12-6 TRL9-SS ETS
SKU: 12-6 TRL9-SS ETS
Availability: OutOfStock

Parker's Seal-Lok Xtreme Metal Face Seal fittings and adapters achieve proven, leak-free connections in critical applications where elastomeric sealing is not an acceptable solution due to temperature or chemical concerns.

Availability:

Backordered

SKU: 12-6 TRL9-SS ETS

Qty:

Products specifications

Attribute name	Attribute value
Shape	Straight	Body Material	Stainless Steel
Connection Type	Metal Face Seal	Connection 1 Size	Flat Face - No Nut
Connection 2 Size	Male Face Seal Tube End	Connection 3 Size	Male NPT/NPTF
Connection 4 Size	na	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	3/4 inch	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
