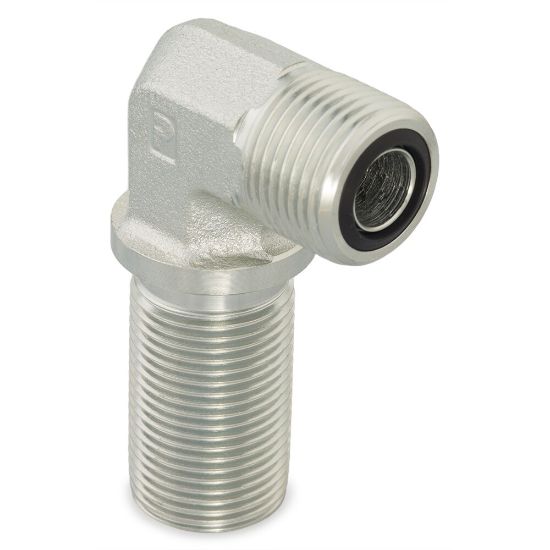

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8WEMLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 8WEMLOS

$53.78

Products specifications

Attribute name	Attribute value
Shape	90° Elbow	Body Material	Steel
Specifications Met	SAE J1453	Maximum Dynamic Pressure	9200 psi
Connection Type	O-ring Face Seal	Division	Tube Fittings Division
Connection 3 Thread Size	na	Connection 4 Tube Outside Diameter	na
Connection 3 Type	na	Connection 2 Thread Size	na
Connection 1 Tube Outside Diameter	12 mm	Connection 2 Tube Outside Diameter	1/2 inch
Connection 2 Type	Male O-Ring Face Seal Bulkhead	O-Ring Material	90 Durometer Nitrile
Connection 4 Type	na	Connection 3 Tube Outside Diameter	na
Connection 1 Type	Male O-Ring Face Seal

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok

Literature and Reference Materials
