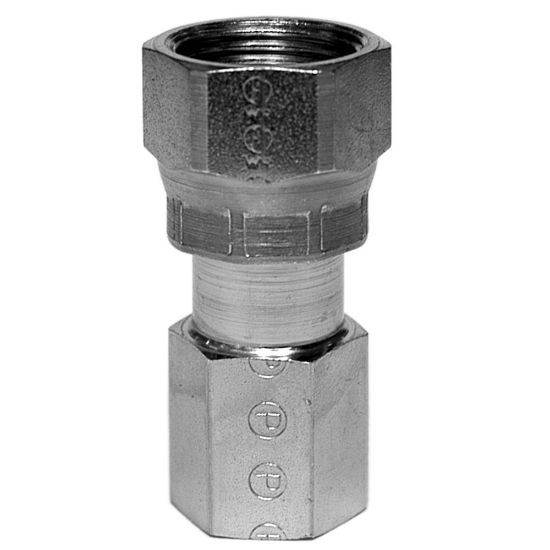

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8TT4MLS

Name: Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8TT4MLS
SKU: 8TT4MLS
Availability: OutOfStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

Backordered

SKU: 8TT4MLS

Qty:

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Body Material	Steel
Maximum Dynamic Pressure	6000 psi	Connection 3 Thread Size	na
Connection Type	O-ring Face Seal	Connection 1 Tube Outside Diameter	1/2 inch
Connection 4 Tube Outside Diameter	na	Connection 1 Type	Female O-Ring Face Seal Swivel
Connection 3 Type	na	O-Ring Material	na
Connection 2 Tube Outside Diameter	na inch	Connection 4 Type	na
Connection 2 Thread Size	1/4-19	Connection 3 Tube Outside Diameter	na
Connection 2 Type	Female BSPP	Shape	Straight
Specifications Met	SAE J1453

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
