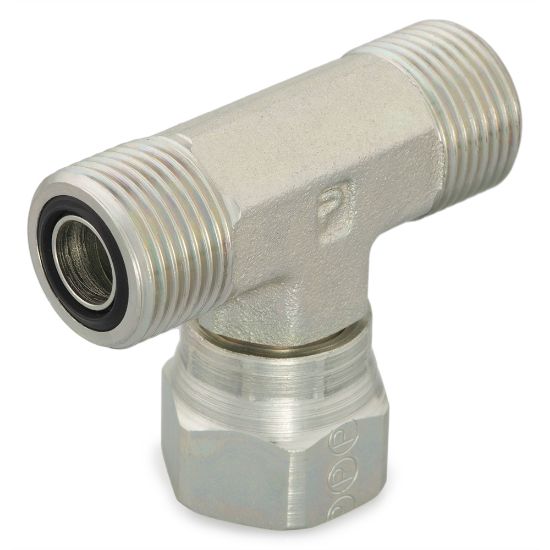

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8S6MLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 8S6MLOS

$40.54

Products specifications

Attribute name	Attribute value
Shape	Tee	Connection 2 Type	Male O-Ring Face Seal
Body Material	Steel	Specifications Met	SAE J1453
Division	Tube Fittings Division	Connection 3 Thread Size	na
Connection Type	O-ring Face Seal	Connection 2 Tube Outside Diameter	12 mm
Maximum Dynamic Pressure	9200 psi	Connection 4 Tube Outside Diameter	na
Connection 2 Thread Size	na	Connection 1 Tube Outside Diameter	12 mm
O-Ring Material	90 Durometer Nitrile	Connection 3 Type	Female O-Ring Face Seal Swivel
Connection 4 Type	na	Connection 1 Type	Male O-Ring Face Seal
Connection 3 Tube Outside Diameter	12 mm

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
