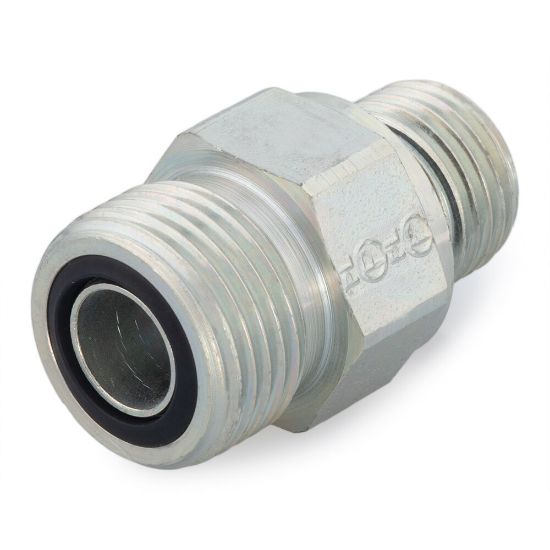

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M26F82EDMLOS

Name: Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M26F82EDMLOS
SKU: 8M26F82EDMLOS
Availability: OutOfStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

Backordered

SKU: 8M26F82EDMLOS

Qty:

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 1 Type	Male O-Ring Face Seal
Shape	Straight	Connection 3 Tube Outside Diameter	na
Body Material	Steel	Specifications Met	SAE J1453
Connection 3 Thread Size	na	Maximum Dynamic Pressure	6000 psi
Connection 4 Tube Outside Diameter	na	Connection 2 Thread Size	na
Connection 3 Type	na	Connection Type	Tube to BSPP-ED
Connection 2 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	12 mm
O-Ring Material	90 Durometer Nitrile	Connection 2 Type	Male BSPP ED Seal
Connection 4 Type	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
