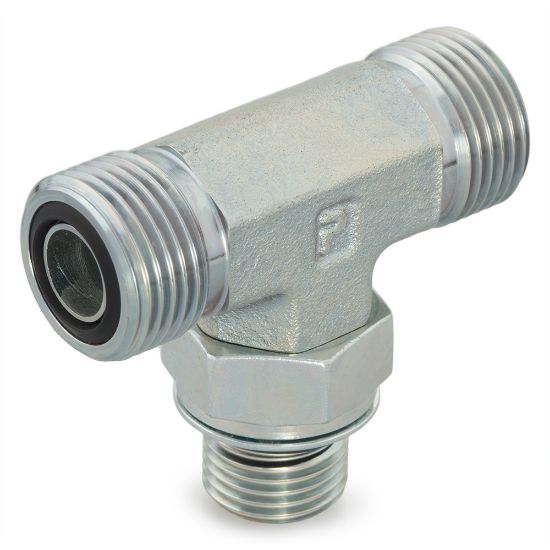

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M22S87OMLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 8M22S87OMLOS

$32.64

Products specifications

Attribute name	Attribute value
Connection Type	O-ring Face Seal	Connection 2 Type	Male O-Ring Face Seal
Body Material	Steel	Maximum Dynamic Pressure	6000 psi
Division	Tube Fittings Division	Connection 4 Tube Outside Diameter	na
Connection 2 Thread Size	na	Dimensional Weight	0.19784172661870503 lb
Connection 3 Thread Size	M22X1.5 mm	Connection 2 Tube Outside Diameter	1/2 inch
Connection 1 Tube Outside Diameter	12 mm	Connection 3 Type	Male ISO 6149
Connection 4 Type	na	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453, ISO 8434-3	Connection 3 Tube Outside Diameter	na
Connection 1 Type	Male O-Ring Face Seal	Shape	Tee

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
