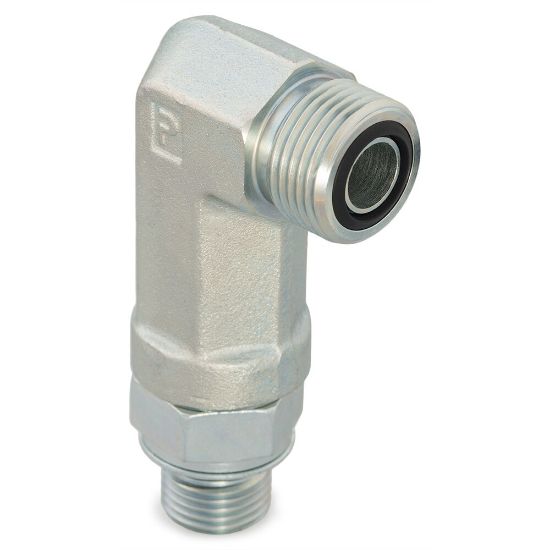

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M18CC87OMLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 8M18CC87OMLOS

$74.85

Products specifications

Attribute name	Attribute value
Connection 4 Tube Outside Diameter	na	Connection 3 Type	na
Connection 2 Thread Size	na	Maximum Dynamic Pressure	3600 psi
Connection 2 Tube Outside Diameter	na	Connection 4 Type	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Type	Male O-Ring Face Seal - Long
Specifications Met	SAE J1453, ISO 8434-3	Connection 3 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	8, 10 mm	Connection 2 Type	Male ISO 6149
Connection Type	Tube to ISO 6149	Connection 3 Thread Size	na
Body Material	Steel	Shape	90° Elbow
Division	Tube Fittings Division

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
