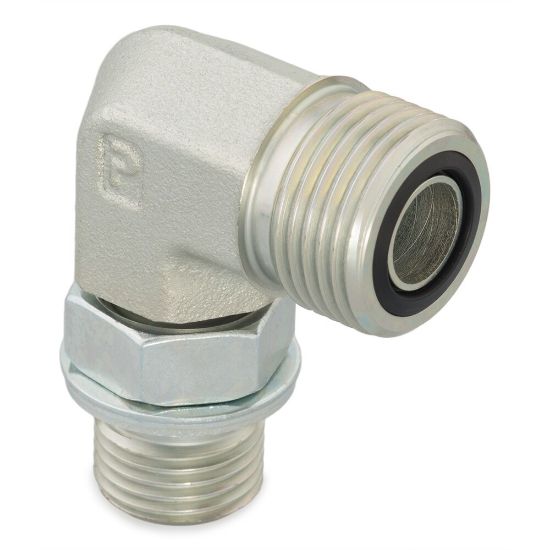

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M16C8OMLOS

Name: Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M16C8OMLOS
SKU: 8M16C8OMLOS
Availability: OutOfStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

Backordered

SKU: 8M16C8OMLOS

Qty:

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 2 Type	Male Metric O-Ring Retaining Ring
Connection 4 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	1/2 inch
Connection 3 Type	na	Maximum Dynamic Pressure	3600 psi
Connection 2 Thread Size	M16X1.5 mm	Connection 2 Tube Outside Diameter	na
O-Ring Material	90 Durometer Nitrile	Connection 4 Type	na
Connection 3 Tube Outside Diameter	na	Connection 1 Type	Male O-Ring Face Seal
Shape	90° Elbow	Body Material	Steel
Specifications Met	SAE J1453	Connection Type	O-ring Face Seal
Connection 3 Thread Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
