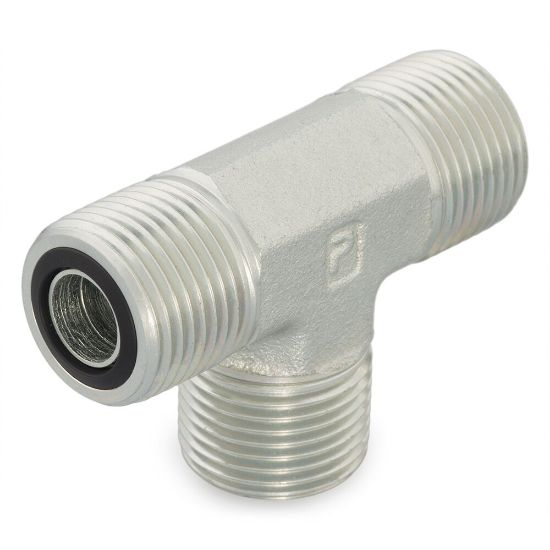

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8JMLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	9 in stock

SKU: 8JMLOS

$27.12

Products specifications

Attribute name	Attribute value
Connection 4 Type	na	Connection Type	Union Tee with Metric Hex
Connection 3 Tube Outside Diameter	na	Connection 2 Type	Male O-Ring Face Seal
Connection 1 Type	Male O-Ring Face Seal	Shape	Tee
Specifications Met	SAE J1453	Connection 3 Thread Size	na
Connection 2 Tube Outside Diameter	12 mm	Body Material	Steel
Maximum Dynamic Pressure	9200 psi	Connection 4 Tube Outside Diameter	na
Division	Tube Fittings Division	Connection 3 Type	Male O-Ring Face Seal
Connection 2 Thread Size	na	Connection 1 Tube Outside Diameter	12 mm
O-Ring Material	90 Durometer Nitrile	Dimensional Weight	0.19784172661870503 lb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
