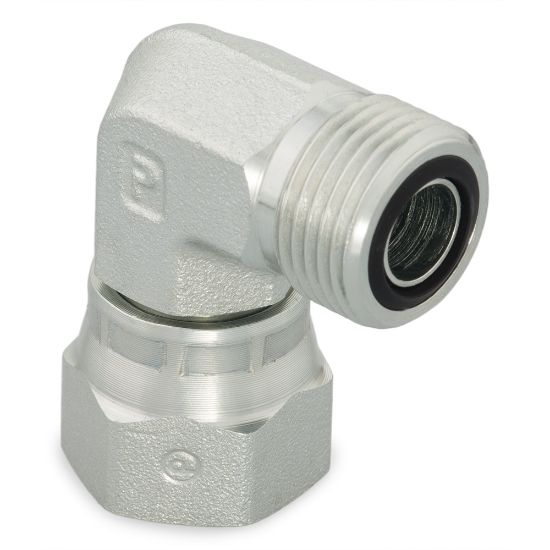

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8C6MLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 8C6MLOS

$24.14

Products specifications

Attribute name	Attribute value
Connection Type	O-ring Face Seal	Specifications Met	SAE J1453
Connection 3 Thread Size	na	Connection 2 Tube Outside Diameter	12 mm
Shape	90° Elbow	Body Material	Steel
Maximum Dynamic Pressure	9200 psi	Division	Tube Fittings Division
Connection 4 Tube Outside Diameter	na	Connection 3 Type	na
Connection 2 Thread Size	na	Connection 1 Tube Outside Diameter	12 mm
Connection 4 Type	na	O-Ring Material	90 Durometer Nitrile
Dimensional Weight	0.07913669064748201 lb	Connection 3 Tube Outside Diameter	na
Connection 1 Type	Male O-Ring Face Seal	Connection 2 Type	Female O-Ring Face Seal Swivel

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
