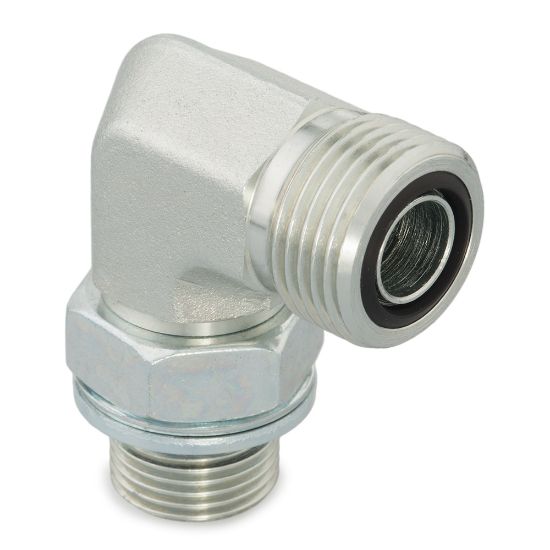

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8C4OMLOSS

Name: Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8C4OMLOSS
SKU: 8C4OMLOSS
Availability: OutOfStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

Backordered

SKU: 8C4OMLOSS

Qty:

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Type	na
Maximum Dynamic Pressure	2900 psi	Connection 3 Tube Outside Diameter	na
Body Material	Stainless Steel	Connection 1 Type	Male O-Ring Face Seal
Specifications Met	SAE J1453	Connection 3 Thread Size	na
Shape	90° Elbow	Connection 4 Tube Outside Diameter	na
Connection 2 Type	Male BSPP O-Ring Retaining Ring	Connection 3 Type	na
Connection 2 Thread Size	3/8-19 inch	Connection 2 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	12 mm	Connection Type	Tube to BSPP-ORR
O-Ring Material	90 Durometer Nitrile

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
